Alps Welding is fabricating a custom heat recovery unit for an energy industry application. As a heat recovery unit fabricator, we bring together aluminum fabrication and stainless steel pressure-retaining assemblies within one custom equipment build.
Measuring 16 ft 8 in long × 6 ft 9 in wide × 5 ft 5 in high, this unit demonstrates our ability to manufacture substantial industrial assemblies incorporating different specified materials.
Heat Recovery Unit Fabrication: Project Overview
- Industry: Energy
- Equipment: Custom heat recovery unit
- Primary construction: Aluminum, including the shell and ductwork
- Pressure-retaining assemblies: Stainless steel
- Overall dimensions: 16 ft 8 in L × 6 ft 9 in W × 5 ft 5 in H
- Project stage shown: Fabrication in progress
Aluminum Fabrication and Stainless Steel Assemblies
Aluminum Shell and Ductwork

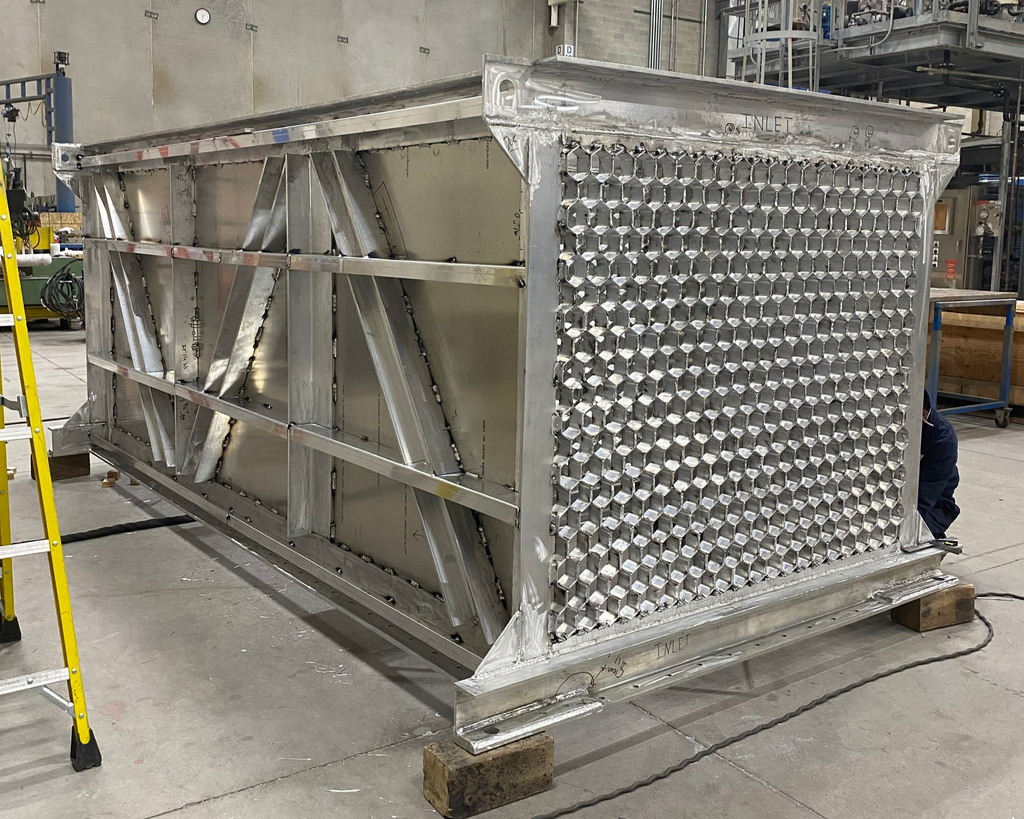

Much of the unit is made from aluminum, including its shell and ductwork. The fabrication photographs show panel sections, framing and diagonal bracing as the assembly takes shape in our shop.
This project offers a closer look at our custom aluminum fabrication capabilities for industrial equipment as a heat recovery unit fabricator.
Stainless Steel Pressure-Retaining Assemblies
The unit also incorporates stainless steel pressure-retaining assemblies. Fabricating equipment with several specified materials requires attention to each component’s requirements and how the assemblies fit together.
Explore our stainless steel fabrication capabilities for related vessels, heat exchangers and process equipment.
A Custom Heat Recovery Unit Manufacturer for Industrial Projects
Custom equipment needs to fit the requirements of the larger installation. Overall dimensions, connection locations, material specifications and assembly interfaces all help define the fabrication scope.
As a custom heat recovery unit manufacturer, Alps Welding supports equipment designers, EPCs and industrial customers with fabrication and assembly. Our related energy recovery heat exchanger project provides another example of equipment incorporating aluminum and stainless steel components.
Discuss Your Heat Recovery Unit Fabrication Requirements
Planning a custom heat recovery unit or a related industrial assembly? Share your available drawings, equipment dimensions and material specifications with Alps Welding.
For pressure-retaining assemblies, include the required design conditions, inspection, testing and documentation scope. Connection details, delivery requirements and any customer-supplied components also help establish what needs to be fabricated and assembled.
Our team can review the available information and discuss the fabrication requirements for your project.
