At Alps Welding, we take pride in turning project requirements into custom fabricated equipment. This carbon steel custom pressure vessel, built for the food and beverage industry, measures 1,700 mm in diameter × 13,000 mm tangent-to-tangent.
As a pressure vessel manufacturer, we understand that every project brings its own combination of dimensions, connections and fabrication requirements. This vessel offers a close look at that work, from its long shell to the arrangement of connections along its body.
A Custom Pressure Vessel Built Around Project Requirements
Custom equipment begins with the needs of the project. For this vessel, the specified material, dimensions and configuration came together in a substantial carbon steel fabrication.
- Equipment: Custom Pressure Vessel
- Industry: Food and Beverages
- Material: Carbon Steel
- Size: 1700mm Diameter x 13000mm Tangent-to-tangent
The tangent-to-tangent measurement describes the length between the vessel’s head tangent lines; it is not the overall shipping length.
Carbon Steel Fabrication at Scale
With a tangent-to-tangent length of 13 metres, this project makes an impression on the shop floor. The photographs show the vessel’s long shell, changes in diameter and multiple flanged connections.
These details give each custom fabrication its own character. Bringing them together requires attention to the complete assembly as well as the individual components.
For our team, the pride is in seeing those details become a finished piece of equipment.
A Closer Look Before Shipment
Photographed on a flatbed trailer inside our shop, the vessel provides several perspectives on the completed fabrication.

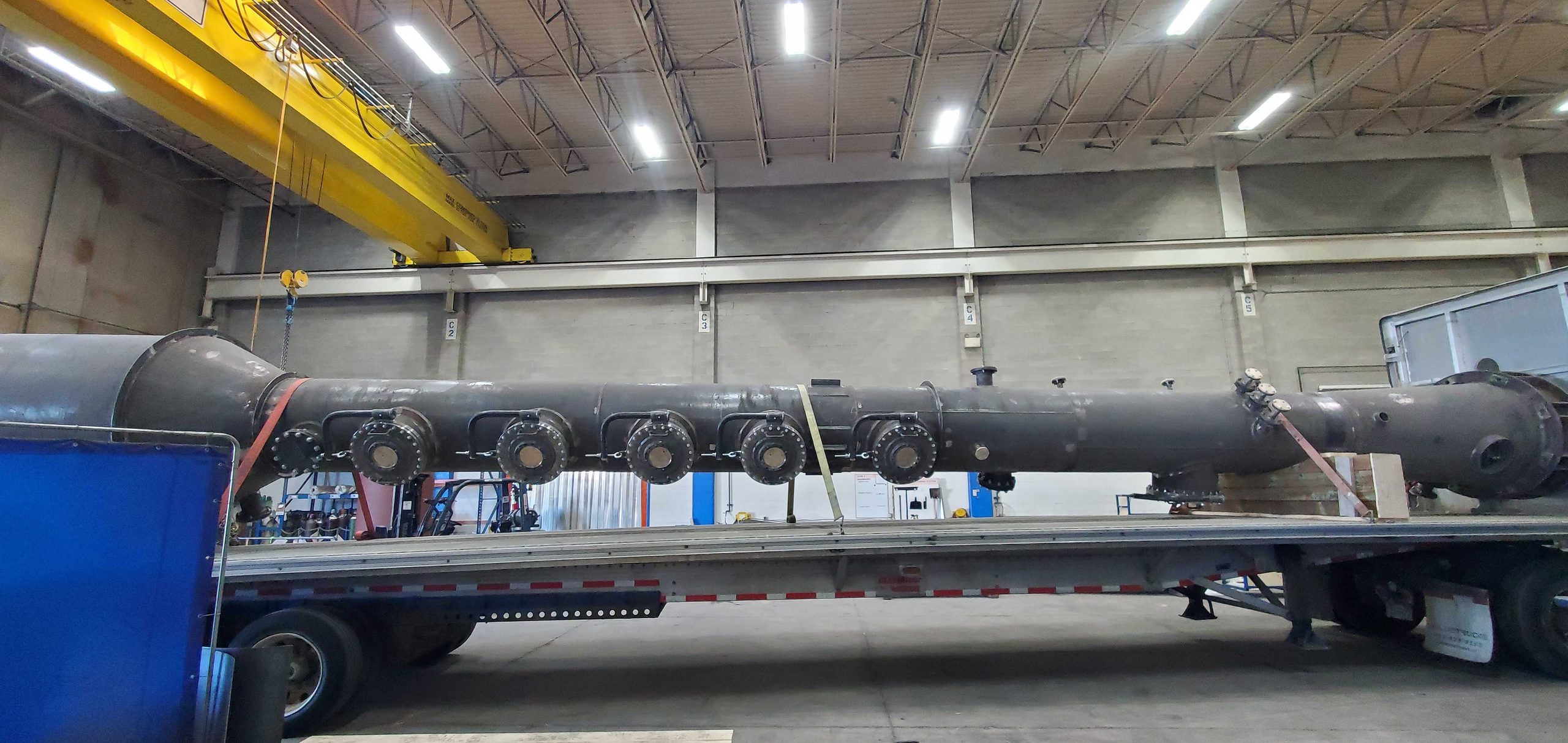

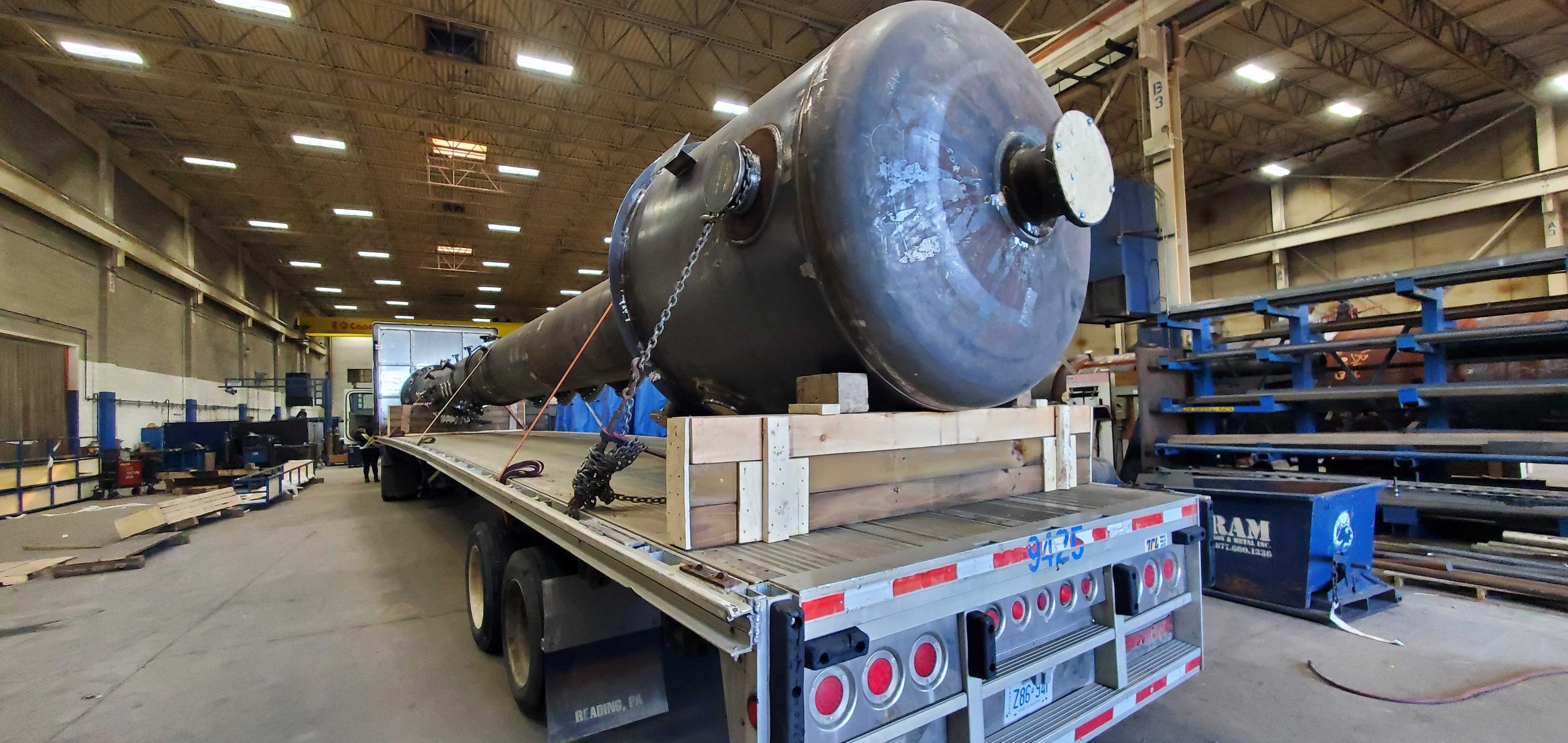

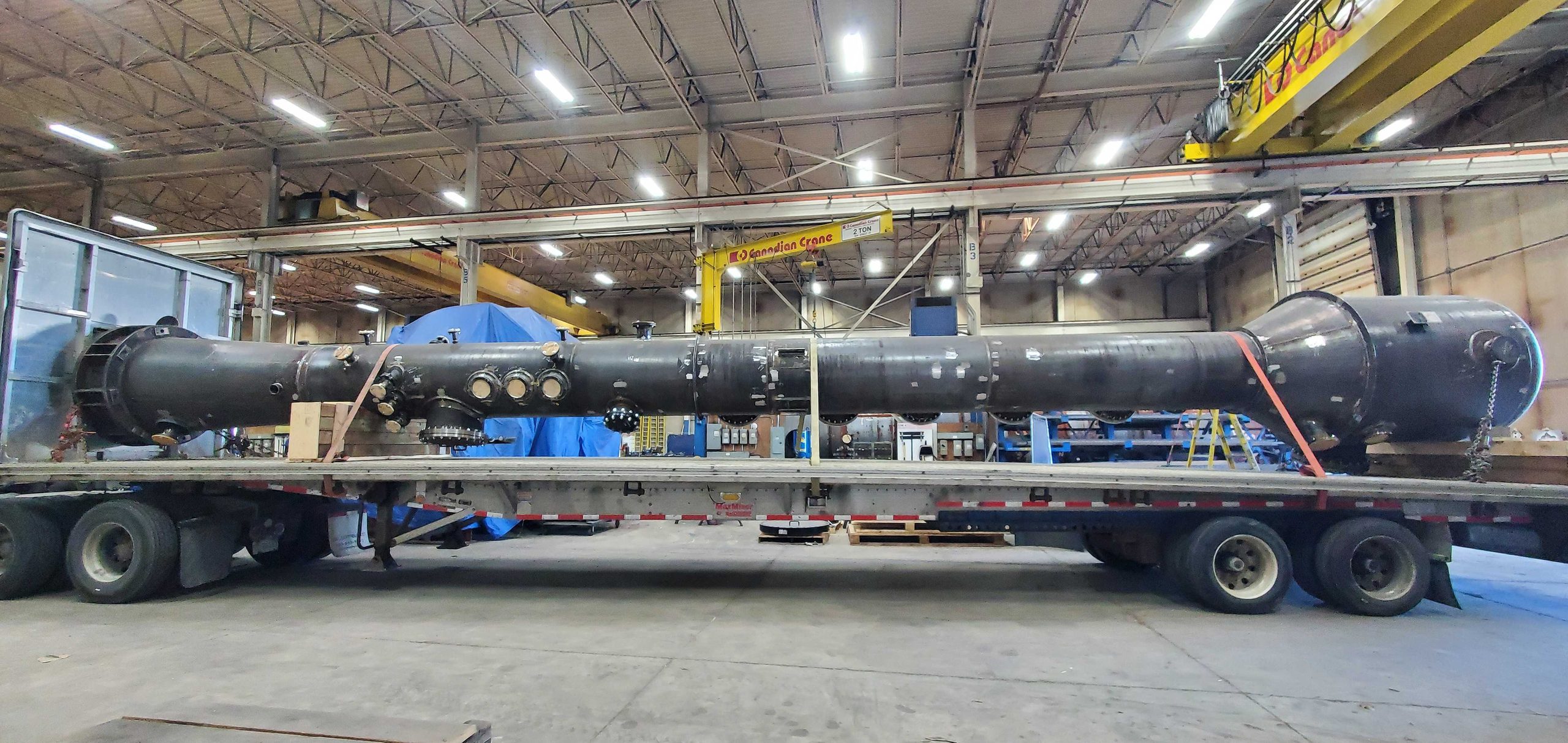

The full side view captures its length and overall profile. Closer views show the vessel head and the connections positioned along the shell, details that can be difficult to appreciate in a single project photograph.
Together, these images document another custom pressure vessel fabricated by Alps Welding for the food and beverage industry.
Let’s Discuss Your Next Pressure Vessel Project
Looking for a pressure vessel manufacturer for a food and beverage project? Share your drawings, dimensions and equipment requirements with our team.
If you are planning an agricultural pressure vessel project, we also welcome the opportunity to review your requirements and discuss how Alps Welding can help.
